A properly designed wine cellar cooling system must do more than lower temperature—it must protect the refrigeration components that safeguard your collection. That’s why many WhisperKOOL® split systems use a pump-down system, a feature that helps ensure long-term reliability and compressor protection.
This article explains what a pump-down system is, how it works, and why it’s beneficial for wine cellar cooling applications.
A pump-down system is a refrigeration control method that uses a solenoid valve installed in the liquid line to regulate refrigerant flow.
Here’s what happens during operation:
The solenoid valve closes when the system reaches its temperature set point.
Even though refrigerant flow to the evaporator stops, the compressor keeps operating, pumping refrigerant into the condenser or receiver.

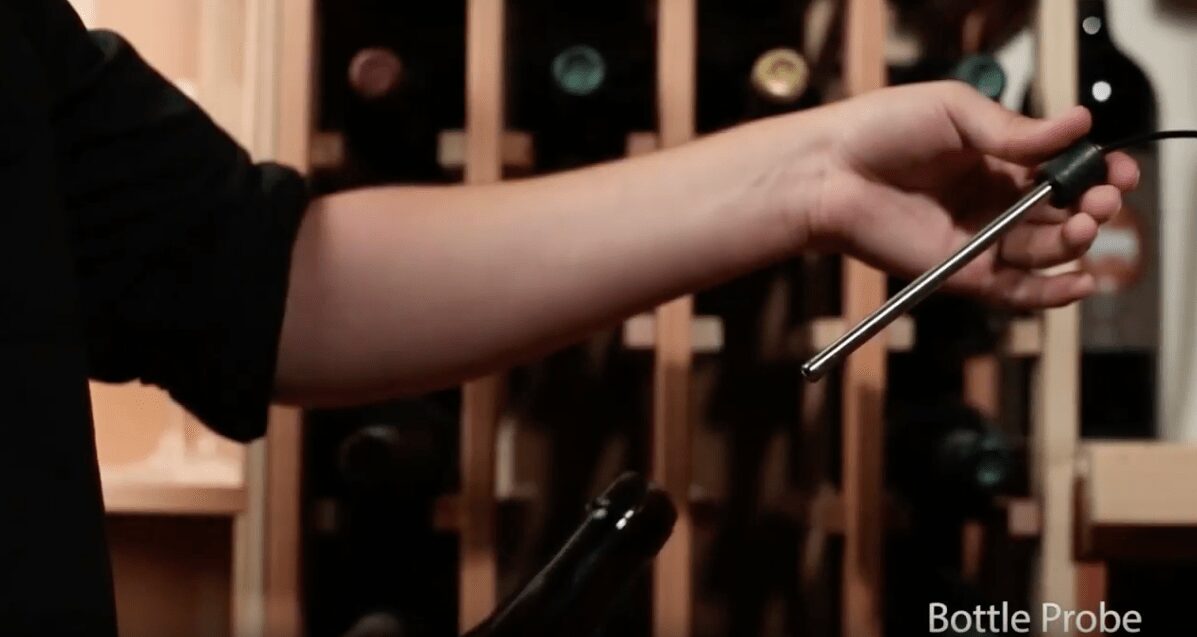

Once the low-side pressure drops to a preset level, the compressor cycles off automatically. Learn more about WhisperKOOL’s bottle probe technology!
When the thermostat calls for cooling again, the solenoid valve reopens, refrigerant flows back into the system, and the compressor restarts at a preset “cut-in” pressure.
This entire process is automatic and calibrated according to the refrigerant used.
In WhisperKOOL split systems, the pump-down sequence is integrated into normal cooling operation:
When cooling is required, the liquid-line solenoid opens and refrigerant begins flowing to the evaporator.
Once the cellar reaches the target temperature, the solenoid closes, stopping refrigerant flow.
The compressor continues running until most refrigerant is pumped into the condenser and receiver.
Typical control settings include a low-pressure cut-out around 15 psi and a cut-in near 25 psi, though values correspond to system design and refrigerant type.
Another advantage: no control wiring is required between the condensing and evaporator units for this process to function.
To simplify installation, WhisperKOOL provides a pre-weighed charge guideline with split systems. This chart helps technicians determine the proper refrigerant amount based on line-set length, completing most of the charging process before final adjustment.
Final charging and service must always be performed by a licensed HVAC-R professional.
Pump-down designs are particularly beneficial in:
Installations with long refrigerant line sets
Systems subject to temperature fluctuations or seasonal shutdowns
High-value cellars where equipment protection is essential
Pump-down technology is one of the engineering differences that helps WhisperKOOL systems deliver dependable, cellar-specific cooling. By controlling refrigerant flow and protecting the compressor during every cycle, this design supports both system longevity and stable wine-storage conditions—two essentials for preserving a fine wine collection.
A: It removes refrigerant from the evaporator during the off-cycle to prevent liquid refrigerant from returning to the compressor and causing damage.
A: Yes. The solenoid valve, pressure controls, and compressor operation are all automated based on temperature demand and system pressure.
A: Reliable cooling protects wine from temperature swings while also ensuring the mechanical system lasts longer with fewer service issues.
A: No. It’s a design choice used in many split systems to improve durability and control compared to more basic refrigeration layouts.
A: Only licensed HVAC-R technicians should perform charging or service procedures.
